Double Fixed Security Gates
$420.00 – $1,399.00
Additional information
| Weight | N/A |
|---|---|
| Gate Height | 6ft – 6ft 6in collapsed, 6ft 6in – 7ft collapsed, 7ft – 7ft 6in collapsed, 7ft 6in – 8ft collapsed, 8ft – 8ft 6in collapsed |
| Max Width | 10ft – 12ft, 12ft – 14ft, 14ft – 16ft, 16ft – 18ft, 18ft -20ft, 20ft – 22ft, 6ft – 8ft, 8ft – 10ft |
| Part Number | Collapsed Height | Closed Height | Max Width | Weight |
|---|---|---|---|---|
| BG-P-865 | 6'6" | 6' | 6' - 8' | 96 lb |
| BG-P-870 | 7' | 6'6" | 6' - 8' | 104 lb |
| BG-P-875 | 7'6" | 7' | 6' - 8' | 110 lb |
| BG-P-880 | 8' | 7'6" | 6' - 8' | 112 lb |
| BG-P-885 | 8'6" | 8' | 6' - 8' | 130 lb |
| BG-P-1065 | 6'6" | 6' | 8' - 10' | 104 lb |
| BG-P-1070 | 7' | 6'6" | 8' - 10' | 110 lb |
| BG-P-1075 | 7'6" | 7' | 8' - 10' | 120 lb |
| BG-P-1080 | 8' | 7'6" | 8' - 10' | 132 lb |
| BG-P-1085 | 8'6" | 8' | 8' - 10' | 148 lb |
| BG-P-1265 | 6'6" | 6' | 10' - 12' | 112 lb |
| BG-P-1270 | 7' | 6'6" | 10' - 12' | 116 lb |
| BG-P-1275 | 7'6" | 7' | 10' - 12' | 122 lb |
| BG-P-1280 | 8' | 7'6" | 10' - 12' | 152 lb |
| BG-P-1285 | 8'6" | 8' | 10' - 12' | 158 lb |
| BG-P-1465 | 6'6" | 6' | 12' - 14' | 128 lb |
| BG-P-1470 | 7' | 6'6" | 12' - 14' | 138 lb |
| BG-P-1475 | 7'6" | 7' | 12' - 14' | 140 lb |
| BG-P-1480 | 8' | 7'6" | 12' - 14' | 164 lb |
| BG-P-1485 | 8'6" | 8' | 12' - 14' | 196 lb |
| BG-P-1665 | 6'6" | 6' | 14' - 16' | 140 lb |
| BG-P-1670 | 7' | 6'6" | 14' - 16' | 164 lb |
| BG-P-1675 | 7'6" | 7' | 14' - 16' | 166 lb |
| BG-P-1680 | 8' | 7'6" | 14' - 16' | 180 lb |
| BG-P-1685 | 8'6" | 8' | 14' - 16' | 196 lb |
| BG-P-1865 | 6'6" | 6' | 16' - 18' | 160 lb |
| BG-P-1870 | 7' | 6'6" | 16' - 18' | 170 lb |
| BG-P-1875 | 7'6" | 7' | 16' - 18' | 180 lb |
| BG-P-1880 | 8' | 7'6" | 16' - 18' | 186 lb |
| BG-P-1885 | 8'6" | 8' | 16' - 18' | 190 lb |
| BG-P-2065 | 6'6" | 6' | 18' - 20' | 178 lb |
| BG-P-2070 | 7' | 6'6" | 18' - 20' | 180 lb |
| BG-P-2075 | 7'6" | 7' | 18' - 20' | 185 lb |
| BG-P-2080 | 8' | 7'6" | 18' - 20' | 192 lb |
| BG-P-2085 | 8'6" | 8' | 18' - 20' | 197 lb |
| BG-P-2265 | 6'6" | 6' | 20' - 22' | 205 lb |
| BG-P-2270 | 7' | 6'6" | 20' - 22' | 210 lb |
| BG-P-2275 | 7'6" | 7' | 20' - 22' | 220 lb |
| BG-P-2280 | 8' | 7'6" | 20' - 22' | 220 lb |
- Heavy-duty 14-gauge steel u-channel webbing
- Riveted back-to-back with zinc plated rivets
- Heavy-duty 12-gauge steel 1-1/2”x1-1/2” vertical angle frame
- Galvanized Finish
- Solid Steel Casters
- Install in Door Jamb or Face-mount
| Weight | Varies By Size |
| Dimensions | Varies By Size |
| Channel | 3/8″ x 3/4″, 14 Gauge Galvanized |
| Frame | 1-1/2″ x 1-1/2″, 12 Gauge Angle Iron, Zinc Plated |

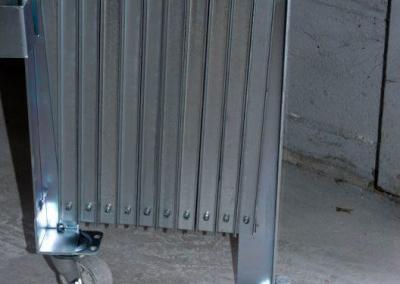

| Caster | 2″ Metal Caster Welded To Frame, Zinc Plated |
| Hasp | 3/16″ Hasp Welded To Frame |
| Drop & Suppport Pins | 5/8″ Dia. Welded To Frame, Zinc Plated |
| U-Bracket | 3/16″ Steel Welded To Frame At Top & Bottom |
| Standard Mounting Bkt | 2-1/2″ x 7″ Steel “L” Bracket, Zinc Plated |
| Rivets | 3/16″ x 1/2″ Steel, Zinc Plated |

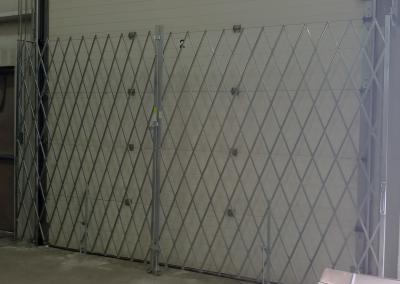

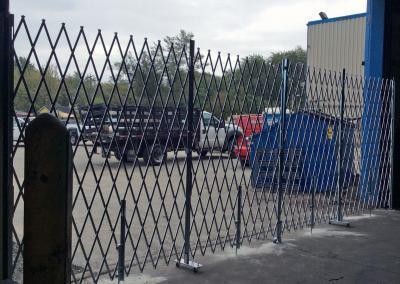

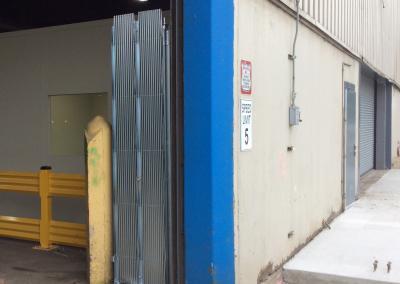

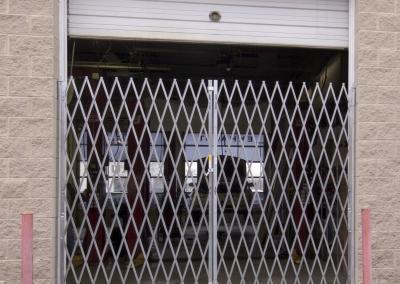

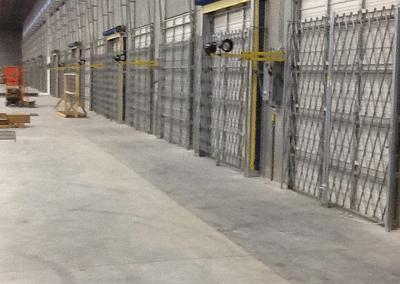

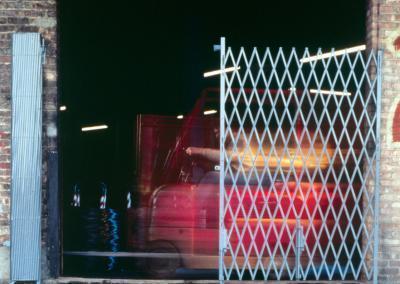

Pair Gates Image Gallery

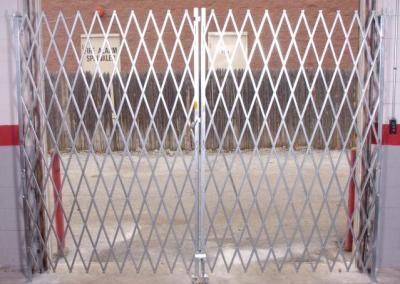

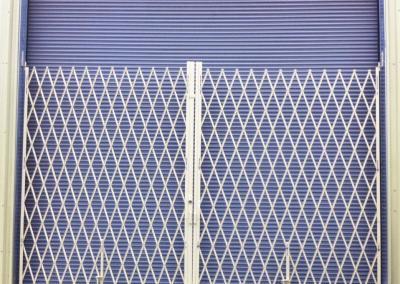

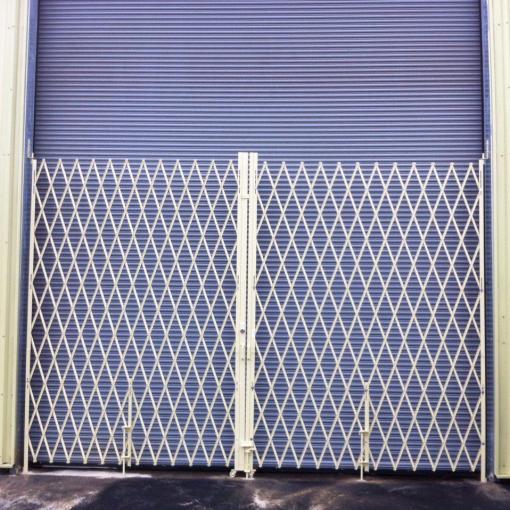

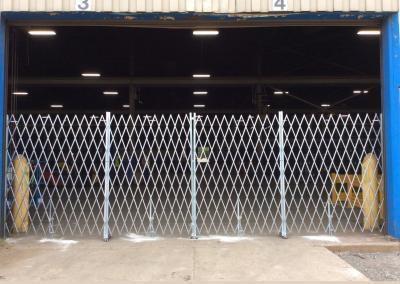

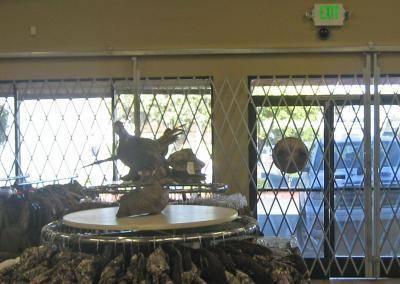

Heavy Duty Pair Folding Security Gates secure dock and receiving doors, doorways, garage and service doors, hallways and entrance-ways without sacrificing visibility or air circulation. Gates have open webbing that allows greater air circulation and visibility during the day, and tight security around the clock. They’re perfect for lift-up doors, and larger doorways and hallways. Gates up to 24′ wide are always in stock. Larger sizes are also available with quick turnaround. Pair Folding Security Gates are ideal for openings greater than 12′, for smaller openings, use one of our Single Folding Gates.

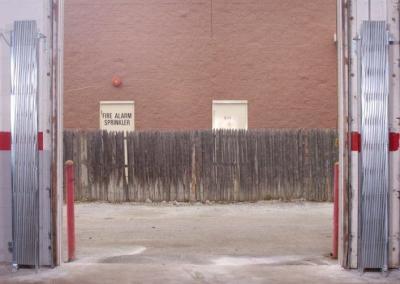

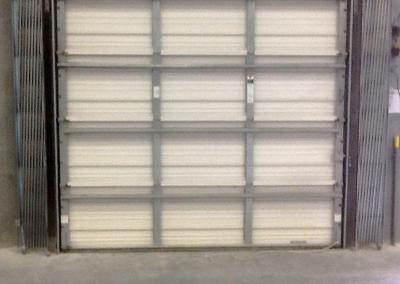

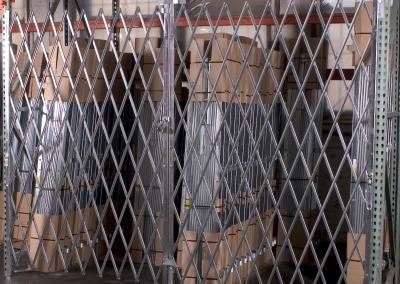

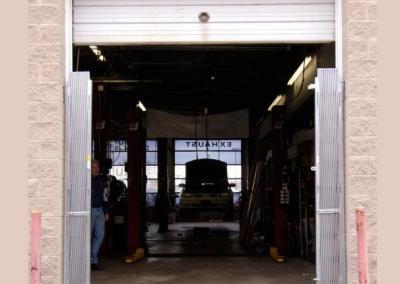

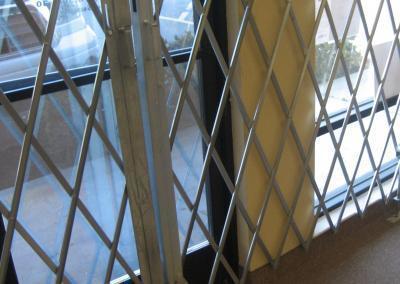

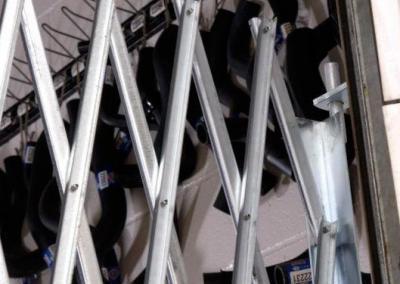

Pair Folding Security Gates can be installed virtually anywhere and anyway you need them, including, inside door jambs, outside door jambs, between posts or bollards, attached to pallet racks, between walls and even in windows! IEP’s Heavy Duty Folding Security Gates pivot 180 Degrees on their mountings — so they move completely out of the way, leaving the opening completely clear of obstructions. Our Pair Folding Security Gates are equipped with brackets, bearing washers and casters. And they’re easy to install. You can install our gates in less than 30 minutes!

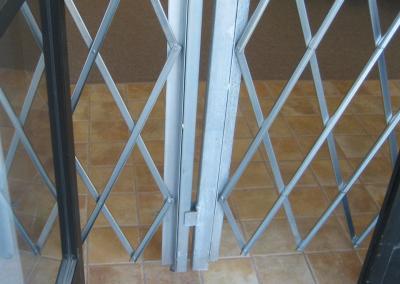

The Strongest Folding Security Gates on the Market, IEP’s Security Gates are the only gates made of solid galvanized steel 5/8” self-securing drop pins designed to fit directly into floor holes. They provide maximum strength and maximum security. You cannot buy a stronger gate! Riveted Back to Back with Aircraft Quality Aluminum Rivets, they hold up to more stress, are rust resistant, won’t crack, and the webbing won’t separate.
