Base Type | Bridge Base, Flat Base |
---|---|
Material | Hot Dipped Galvanized Steel |
LineMaster 1″ Diameter Frame Barricade
The Strongest Economy Barricade
*CALL FOR VOLUME DISCOUNTS AND SHIP RATES
- Durable Construction
- Versatile Foot Placement
- Multiple Feet and Color Options
- Interlocking System – Hook and Loop
SKU: N/A
Categories: Crowd Control, Steel Barriers
Introducing the LineMaster Barrier: A New Standard in Barricade Design
The LineMaster features a revolutionary 1" diameter frame, combining 16-gauge, hot-dip galvanized steel with an innovative 1" outer diameter frame. This design ensures it can withstand heavy-duty, permanent outdoor use while remaining cost-effective.
Key Features:
- Robust Construction: The 21 uprights are spaced just 3.75" apart and are fully inserted into the frame before welding, providing exceptional strength and durability.

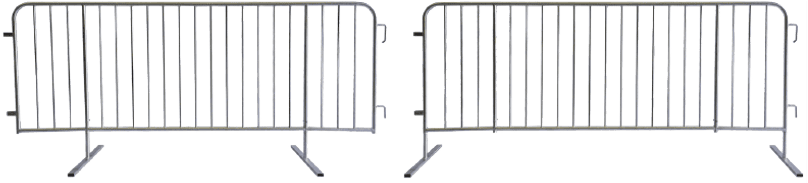

- Versatile Foot Placement: The feet can be positioned either outside the frame or inboard for additional support, especially useful if the barricade is climbed on. The inboard position also allows for right-angle configurations.

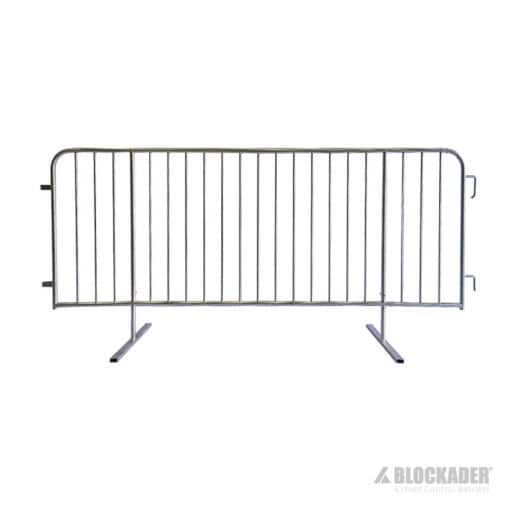

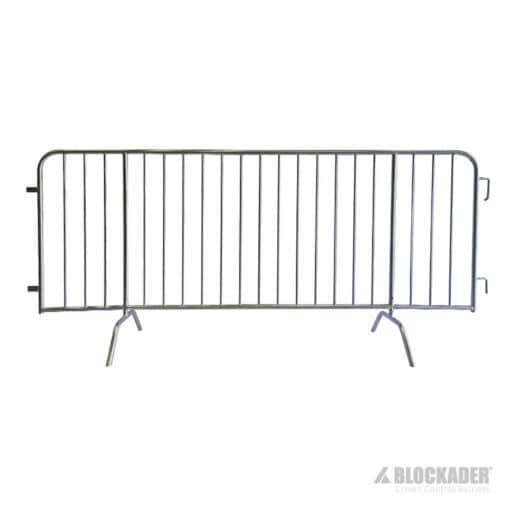

- Durability and Adaptability: Available with Heavy Duty Flat Feet for maximum durability or Bridge Feet for uneven surfaces such as grass.
- Interlocking System: The barricades use the industry-standard hook and loop fastening system, allowing you to create a crowd barrier of any length.
The LineMaster offers unparalleled strength and versatility, making it the ideal choice for a variety of crowd control applications. Call (800) 448-2647 for color options.
Specifications:
- Length: 8'4" (2.5m)
- Height: 43" / 1.1m
- Finish: Hot Dip Galvanized
- Material: 16 Gauge Steel
- Weight:
- 34 lbs. (15 kg.) - HD Flat Feet
- 31.5 lbs. (14 kg.) - Bridge Feet
- Number of Uprights: 21 (2 are thicker for higher strength)
- Space Between Uprights: 3.75"
- Frame Outside Diameter: 1"
- Connectors: Hook and Loop
